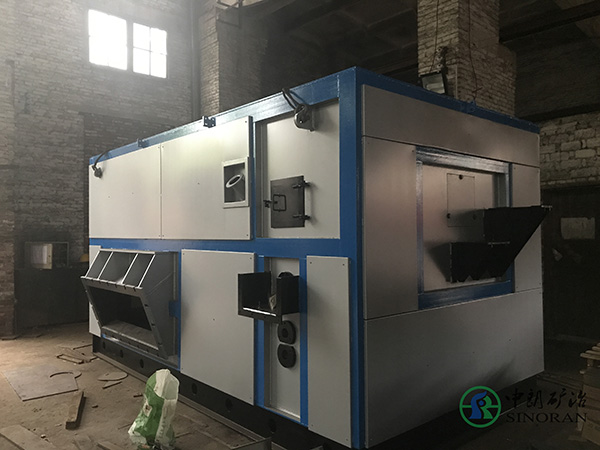

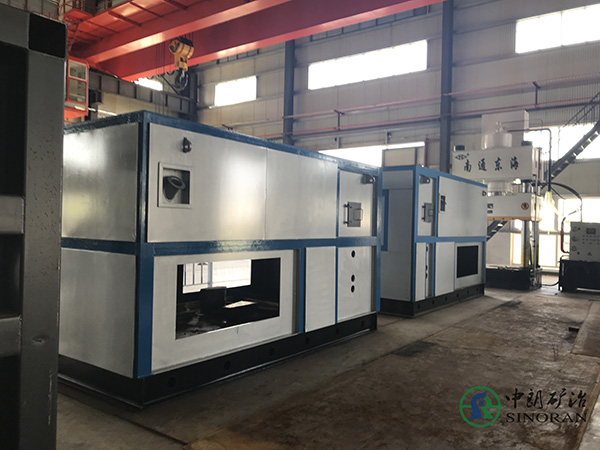

Induction Furnace

Introduction：

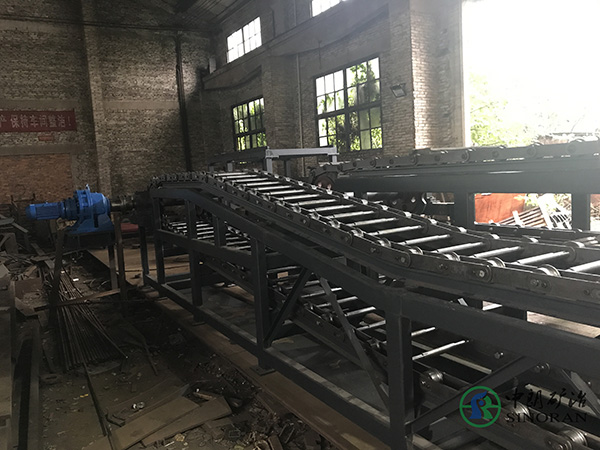

To achieve the melting and casting function, a set of industrial-use frequency induction furnace is consisted of furnace body, refractory material, feeding system, cooling system, inductor, electrical control system and ingot casting system. This equipment is mainly used in melting and thermal insulation procedures of Pb, Zn, Cu and cast iron.

Features：

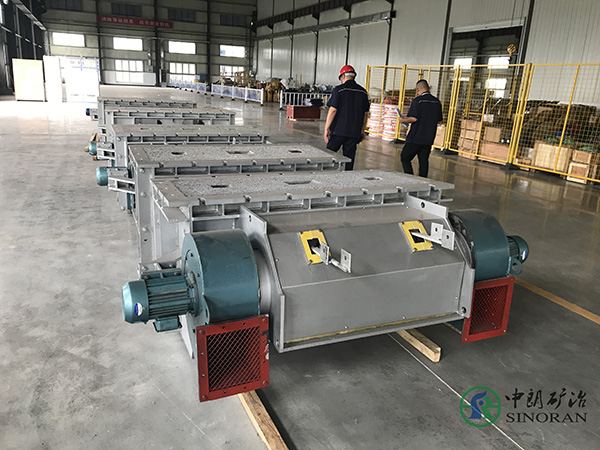

(1)Dismountable inductor, easy to replace.

(2)Special structure of melting channel ensures the small temperature difference between the molten metal and the hearth, which makes longer service life of the inductors.

(3)The furnace wall is poured by low cement material, which has better integrity and sealing property.

(4)Equipped with Overvoltage and overcurrent protection devices, when the cooling air temperature of inductor is too high, the furnace has automatic alarm and shutdown function.

Technical Parameters

Model	Capacity	Power	Inductor Qty	Voltage
GYX-100-2000	100t	2000kW	2	380V
GYX-100-2000	100t	2000kW	3	660V
GYX-60-1200	60t	1200kW	4	500V
GYX-50-960	50t	960kW	3	380V
GYX-50-900	50t	900kW	3	380V
GYX-45-900	45t	900kW	3	380V
GYX-40-800	40t	800kW	2	500V
GYX-50-720	50t	720kW	3	380V
GYX-40-72	40t	720kW	3	380V
GYX-40-600	40t	600kW	2	380V
GYX-35-600	35t	600kW	2	380V
GYX-32-540	32t	540kW	6	380V
GYX-32-480	32t	480kW	2	380V
GYX-32-480	32t	480kW	6	380V
GYX-25-360	25t	360kW	2	380V
GYX-25-360	25t	360kW	6	380V
GYX-15-240	15t	240kW	2	380V
GYX-15-240	15t	240kW	3	380V
GYX-12-180	12t	180kW/240kW	1	380V
GYX-10-400	10t	400kW	1	500V
GYX-6-400	6t	180kW	1	380V
