Introduction

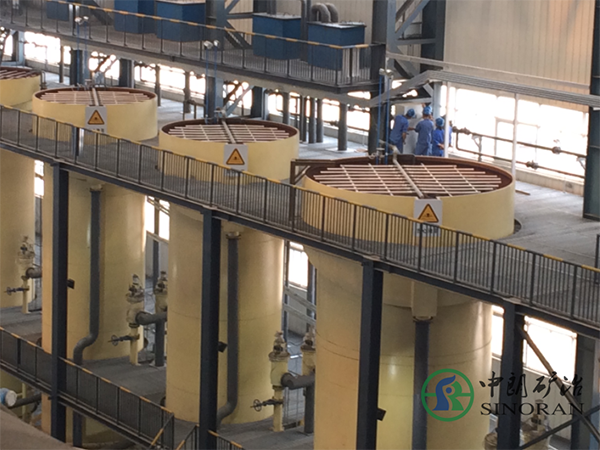

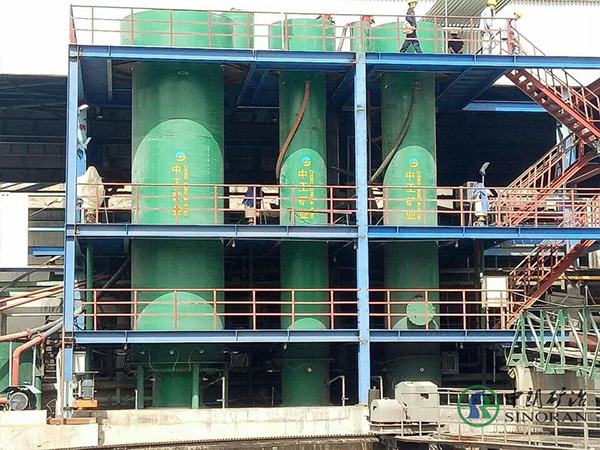

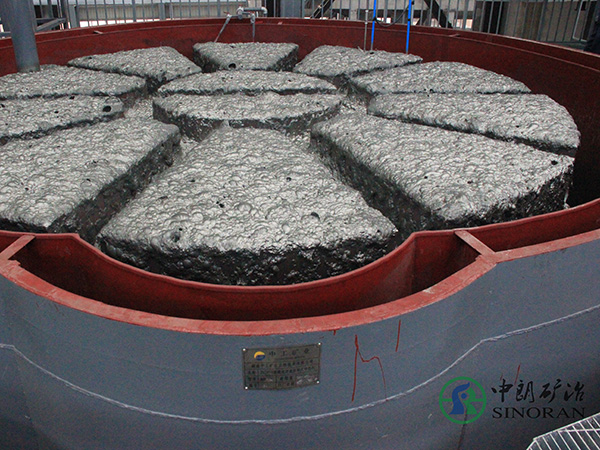

Flotation column is a new-type flotation equipment widely used in Pb, Zn, Cu, P and other mineral flotation area. Air bubbles generated by a lance-type micro-bubble generator, the flotation column has much better performance than conventional flotation machine in floating fine materials. The advantage of this equipment are: high concentrate ratio, low energy consumption, low construction cost, low maintenance and automatic control.
|
Specification ΦD×H(m) |
Bubble Zone Area m2 |
Feed concentration % |
Capacity m3/h |
Aeration rate m3/h |
|
ZGF Φ0.4 ×(8~14) |
0.126 |
10-50 |
2-10 |
8-12 |
|
ZGF Φ0.6 ×(8~14) |
0.283 |
10-50 |
3-11 |
17-25 |
|
ZGF Φ0.7 ×(8~14) |
0.385 |
10-50 |
4-13 |
23-35 |
|
ZGF Φ0.8 ×(8~14) |
0.503 |
10-50 |
5-18 |
30-45 |
|
ZGF Φ0.9 ×(8~14) |
0.635 |
10-50 |
7-25 |
38-57 |
|
ZGF Φ1.0 ×(8~14) |
0.785 |
10-50 |
8-28 |
47-71 |
|
ZGF Φ1.2 ×(8~14) |
1.131 |
10-50 |
12-41 |
68-102 |
|
ZGF Φ1.5 ×(8~14) |
1.767 |
10-50 |
19-64 |
106-159 |
|
ZGF Φ1.8 ×(8~14) |
2.543 |
10-50 |
27-92 |
153-229 |
|
ZGF Φ2.0 ×(8~14) |
3.142 |
10-50 |
34-113 |
189-283 |
|
ZGF Φ2.2 ×(8~14) |
3.801 |
10-50 |
41-137 |
228-342 |
|
ZGF Φ2.5 ×(8~14) |
4.524 |
10-50 |
49-163 |
271-407 |
|
ZGF Φ3.0 ×(8~14) |
7.065 |
10-50 |
75-235 |
417-588 |
|
ZGF Φ3.2 ×(8~14) |
8.038 |
10-50 |
82-256 |
455-640 |
|
ZGF Φ3.6×(8~14) |
10.174 |
10-50 |
105-335 |
583-876 |
|
ZGF Φ3.8 ×(8~14) |
11.335 |
10-50 |
122-408 |
680-1021 |
|
ZGF Φ4.0 ×(8~14) |
12.560 |
10-50 |
140-456 |
778-1176 |
|
ZGF Φ4.5 ×(8~14) |
15.896 |
10-50 |
176-562 |
978-1405 |
|
ZGF Φ5.0 ×(8~14) |
19.625 |
10-50 |
225-692 |
1285-1746 |
