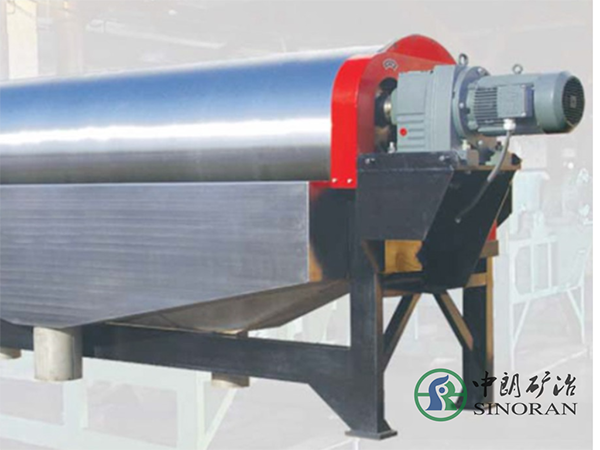

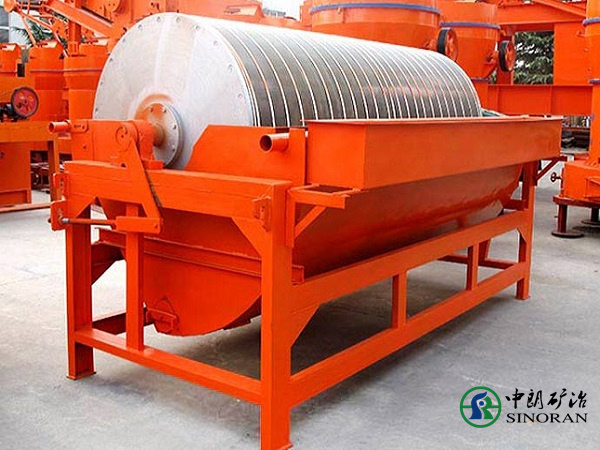

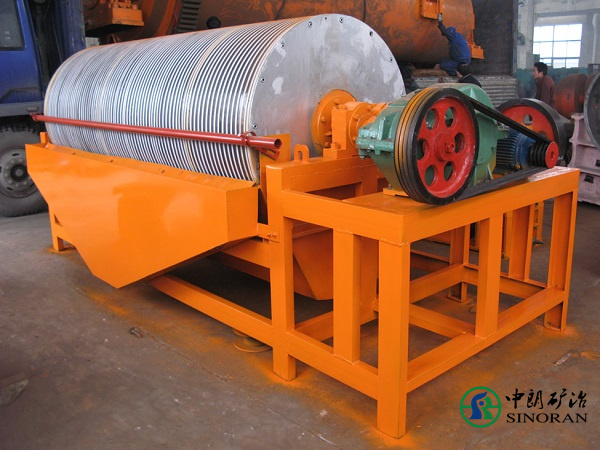

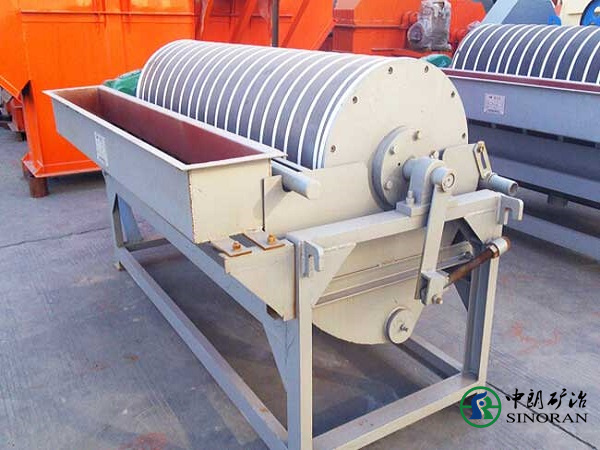

Magnectic Separator

Introduction

Magnetic separator is widely used in mineral processing, coal washing and chemical industries for strong magnetic minerals that wet classification size ranges from 0 to 6mm, and divides the minerals into magnetic and non-magnetic materials. It often processes strongly magnetic materials such as magnetite, magnetic pyrite etc.

Application

1.Ferrous metal：Hematite, Limonite, Siderite, Ilmenite, Manganese ore;

2.Nonferrous metal: Wolframite, Garnet.

3. Rare metals: Tantalum-niobium ores, Zinnwaldite, Monazite, Lithium-yttrium ore;

4.Non-metal: Quartz, Feldspar, Kaolin, refractory materials.

Technical Parameters

Model	Cylinder Dimension (mm)	Magnetic induction intensity(mT)	Cylinder Rotate speed	Feeding size(mm)	Capacity (t/h)	Motor Model	Motor Power (kW)	Weight (kg)
CTB-69	Φ600*900	145-180	40	0~0.2	8~15	Y90L-4	1.5	981
CTB-612	Φ600*1200	145-180	40	0~0.2	10~20	JTC561	2.2	1050
CTB-618	Φ600*1800	145-180	40	0~0.2	15~30	JTC561A	2	1390
CTB-712	Φ700*1200	155-180	35	0~0.2	15~30	JTC562A	2.8	1510
CTB-718	Φ700*1800	155-180	35	0~0.2	20~45	JTC562A	2.8	1579
CTB-918	Φ900*1800	165-180	28	0~0.2	25~55	XWD4-7-35	4	4000
CTB-930	Φ900*3000	165-180	28	0~0.2	52~100	XWD5.5-7-43	5.5	4280
CTB-1018	Φ1050*1800	165-180	20	0~0.2	40~80	YCT280-5.5-19.2	5.5	3807
CTB-1021	Φ1050*2100	165-180	20	0~0.2	40~80	XWD5.5-7-43	5.5	3921
CTB-1024	Φ1050*2400	165-180	20	0~0.2	52~100	XWD5.5-7-43	5.5	4404
CTB-1030	Φ1050*3000	160-180	20	0~0.2	120~200	XWD7.5-7-43	7.5	4431
CTB-1218	Φ1200*1800	165-180	19	0~0.2	130~140	XWD5.5-7-43	5.5	5800
CTB-1221	Φ1200*2100	165-180	19	0~0.2	55~110	XWD7.5-7-43	7.5	5800
