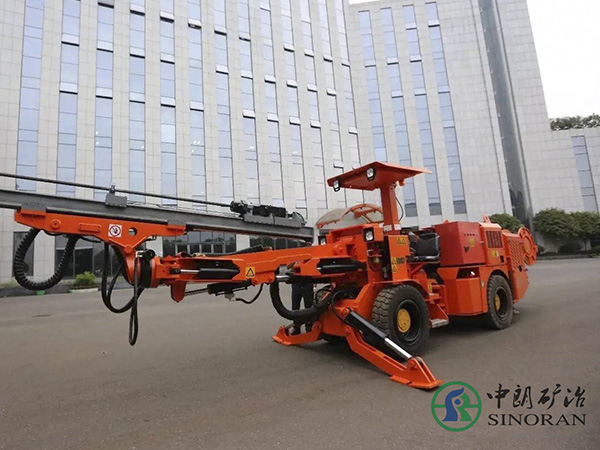

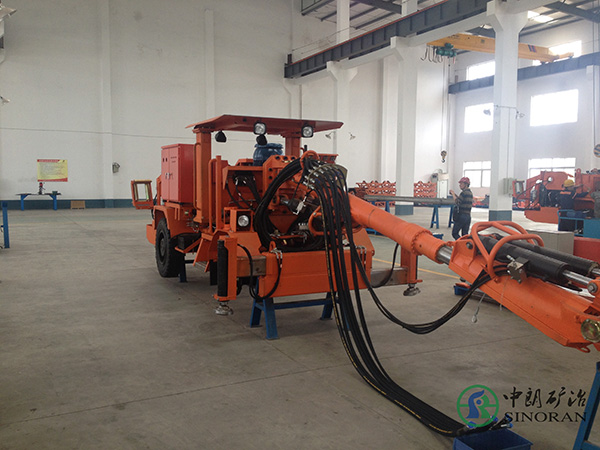

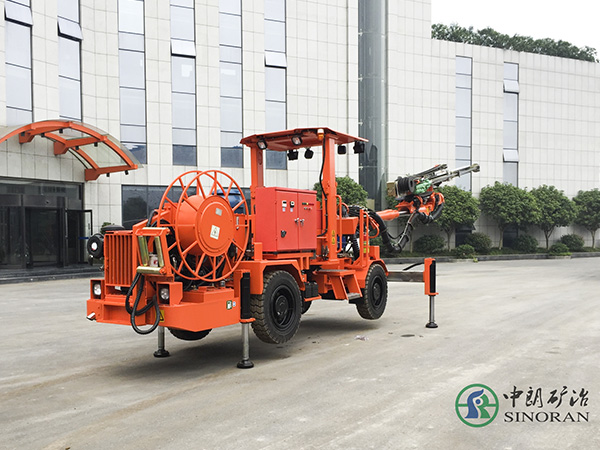

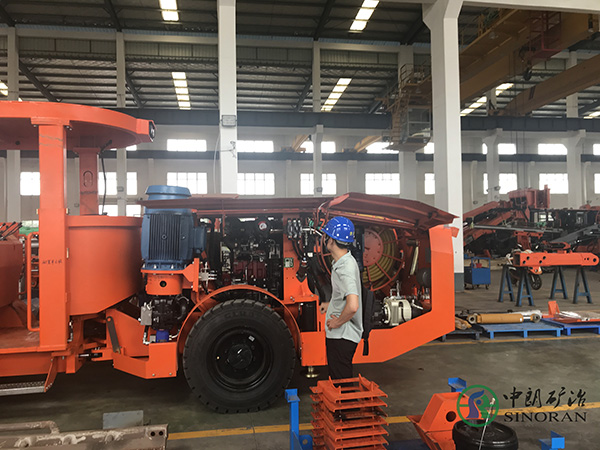

Drilling jumbo is a mining equipment widely used in underground mining if mining is done by drilling and blasting. It is also used in tunnel ,culvert tunnelling engineering with advanced hydraulic system and anti-clamping bit device ,the rock drilling rig is a modern equipment of convenient, safe and reliable operation.
Equipped with double dynamic system and full hydraulic system, the rig has the advantages of high speed drilling, low energy consumption, flexible movement. Furthermore, the drilling system can avoid stuck problem automatically. The complete machine is designed as compact type, which not only improved the stability, but also reduced labor intensity.
|
Item |
Unit |
DT2-35 |
DT1-14 |
DT2-35D |
DT1-14D |
|
Boom |
Set |
2 |
ZB11 |
2 |
ZB11 |
|
Coverage area(W×H) |
Mm |
≤7300×5500 |
4650×3850 |
≤7300×5500 |
4300×3500 |
|
Drill speed |
m/min |
0.8~2 |
0.8~2 |
0.8~2 |
0.8~2 |
|
Hole diameter |
Mm |
Φ27-Φ102 |
Φ27-Φ102 |
Φ27-Φ102 |
Φ27-Φ102 |
|
Parallel holding |
|
Hydraulic parallel |
Mechanical parallel |
Hydraulic parallel |
Mechanical parallel |
|
Propeller model |
|
|
TJQ11/TJQ13 |
|
TJQ11/TJQ13 |
|
Drifter |
|
HYD200/HC25 |
HYD200 |
HYD200/HC25 |
HC25 |
|
Hole depth |
Mm |
2100/2700 |
2700/2100 |
2100/2700 |
2700/2100 |
|
Feed extension |
Mm |
1550 |
1550/1400 |
1500 |
1550/1400 |
|
Total length |
Mm |
9065 |
4228/3628 |
9065 |
4228/3628 |
|
Drill steel length |
Mm |
2475/3090 |
3090/2475 |
2475/3090 |
3090/2475 |
|
Travelling speed |
m/min |
25 |
25 |
25 |
25 |
|
Crawler plate width |
Mm |
330 |
270 |
330 |
350 |
|
Min. turning radius |
M |
5 |
5 |
5 |
5 |
|
Adaptive tunnel slope |
° |
≤14 |
≤18 |
≤26 |
≤28 |
|
Total installed power |
kW |
75+2.2+2.2 |
37+1.1+1.1 |
75+2.2+2.2 |
37+1.1+1.1 |
|
Voltage |
V |
1140/660/380 |
1140/660/380 |
1140/660/380 |
1140/660/380 |
|
Max. swinging angle |
° |
±35 |
±32 |
±35 |
±32 |
|
Max. lifting angle |
° |
55/16 |
45/20 |
55/16 |
45/20 |
|
Radial direction rotation |
° |
±180 |
±180 |
±180 |
±180 |
|
Max. feed lifting angle |
° |
35/10 |
35/10 |
35/10 |
35/10 |
|
Max. feed swinging angle |
° |
14/35 |
35/10 |
14/35 |
|
|
Weight |
Kg |
12100 |
8000/7900 |
12100 |
8000/7900 |
|
Dimensions(L×W×H) |
Mm |
9065×1350×2012 |
8700×950×1800 |
9065×1500×2012 |
8700×1200×2840 |
|
Cable reel |
|
with/without |
with/without |
with/without |
with/without |
