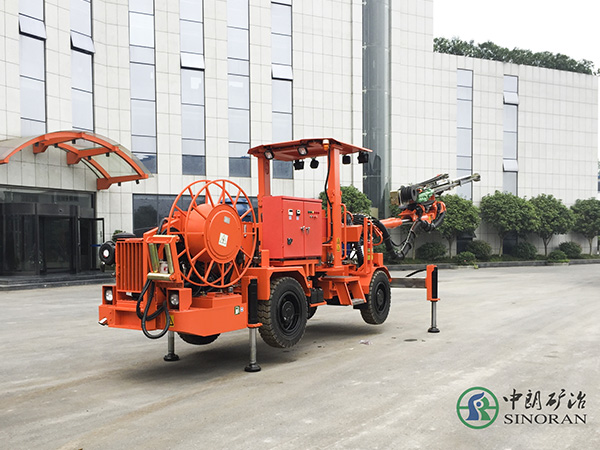

Mining Hydraulic Jumbolter


The mine hydraulic bolt drill is a new professional bolt drill, specially built for mine anchoring operation, suitable for underground mines, medium and small underground engineering bolt operation.
The machine adopts two hydraulic rock drill for drilling and one for plug the bolt. As per client's demand, the bolt bar device and the net grabbing manipulator can be optional. This machine can make operator's attention to focused on the safe, fast and efficient bolt support.
The special bolt head has simple structure and high bolt support efficiency. The modular design can be customized according to all common types of bolts or combined bolts. The length is 1.5 to 3m and other different specifications, which can easily realize the mechanized operation of drilling, net hanging and rod filling.
The automation of bolt installation can ensure the high efficiency, stable quality and durability of bolt support.

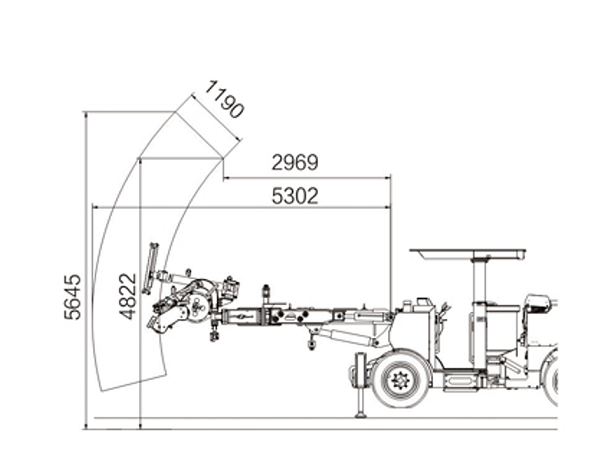

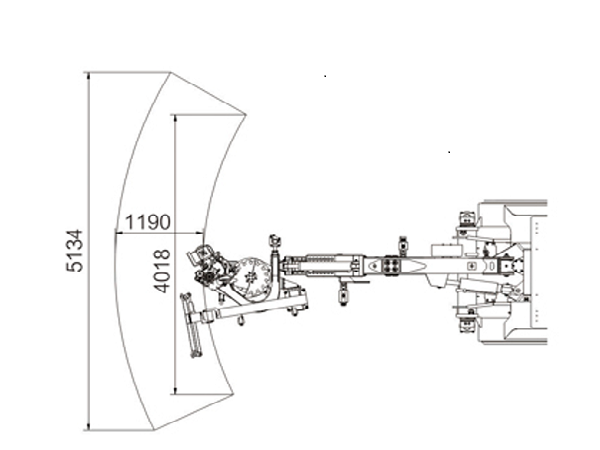

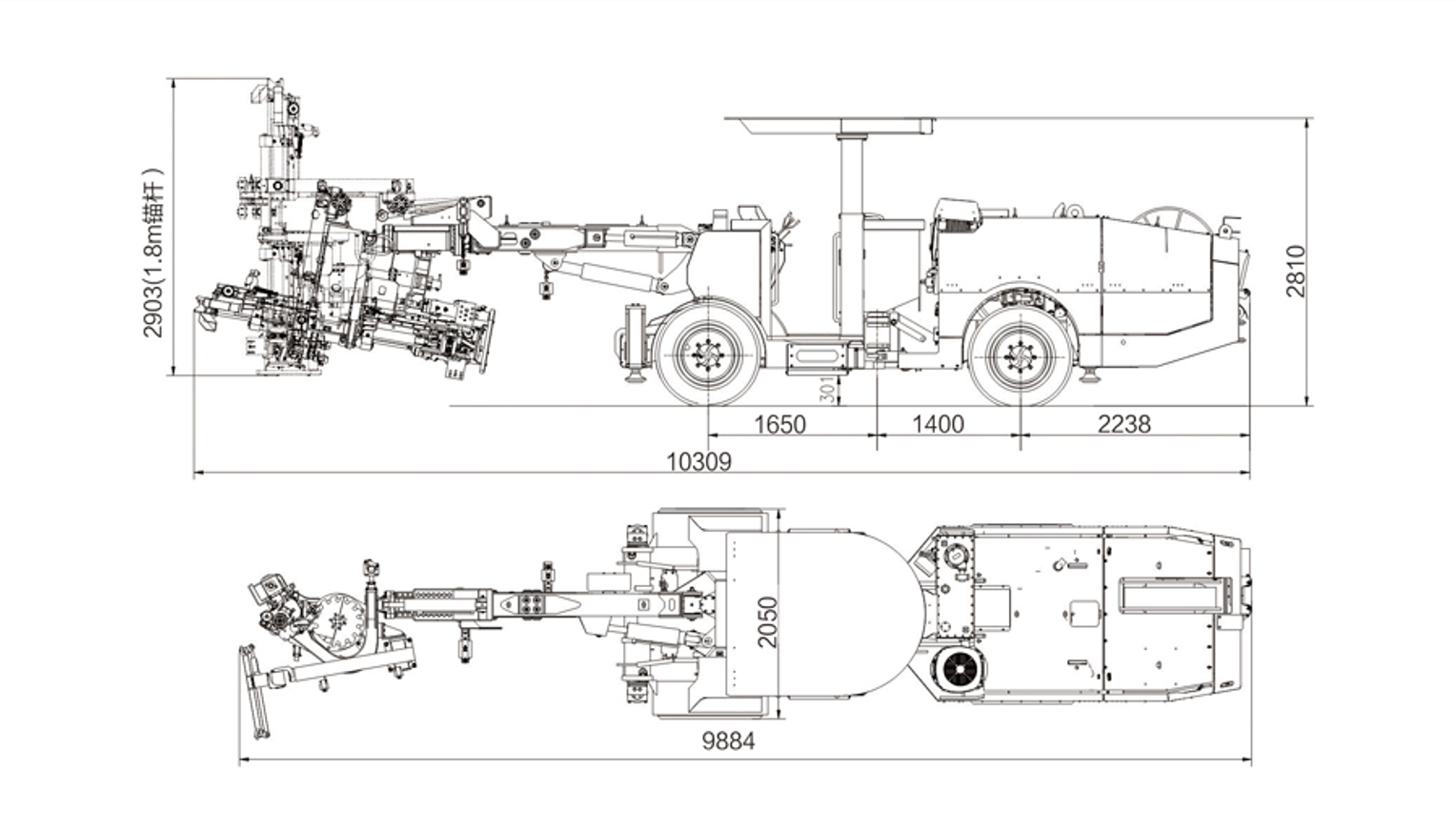

Technical Parameters
